| Model name |
SNS 220K |

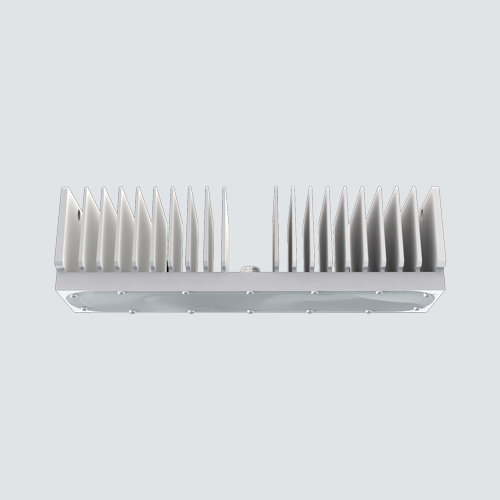

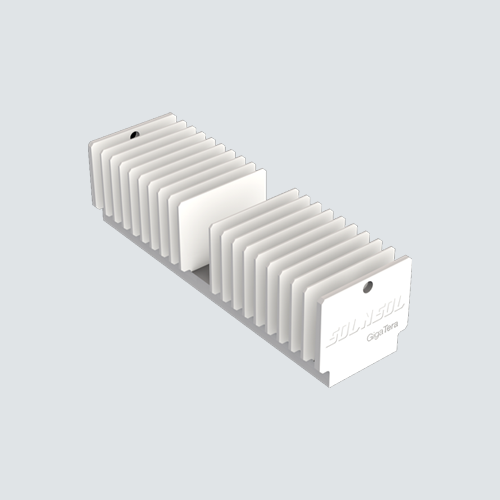

| Heat dissipation structure |
Extruded Fin |
| Input Voltage (Max.) |
200W |
| PPF (umol/s) |
400-750nm / 506 |
| PPE (umol/J) |
400-750nm / 2.53 |
| PE (umol/J) |
380 -780nm / 2.54 (Max 3.3) |
| Light distribution type |
Normal / Wide |
| Input voltage |
200 ~ 277Vac / 277 ~ 480Vac |
| Input current |
Max 9.3A (@200Vac) / Max 6.0A (@347Vac) |
| Size (mm) |
300 x 90 x 88 mm |
| Weight (Without driver) |
1.95 kg |
| Texture |
AL6063 |
| IP rating |
IP66 |
| Operating temperature |
-30°C ~ 45°C |
| Warranty |
5 Years (12 hours usage per day) |
|
